Home/Heating and Cooling/Wall Exhaust Fan/Ring Plate RP252 Exhaust Fan

SKU: RP252

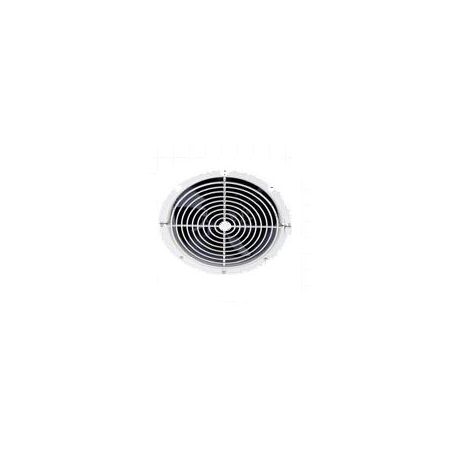

Ring Plate RP252 Exhaust Fan

$526.70

+ −

30 Days Return Delivery Options

Weight: 4.000 kg

Description

Applications

Commercial and small industrial ventilation applications where higher airflows are required such as restaurants, offices, store rooms, computer rooms, switch board ventilation, cooking areas etc.

Installation

The Ring Plate range is designed to be wall or ceiling mounted and can be connected to a length of duct where required. External weatherproof louvres may also be utilised

Features

Powerful air flow and pressure performance.

High quality “Continuous Run” motor.

Contemporary design.

Can be connected to ducting.

Speed-controllable.

Motor protection IP44.

Auto-reset thermal cutout protection fitted.

Bearings – sealed-for-life, ball.

220-240V, 50Hz.

Technical Data

Model Number	m³/hr^†	L/sec^†	Fan Speed Rpm	dBA @ 3m	Watts	Volts
RP202	792	220	2580	52	70	240
RP204	468	130	1440	39	30	240
RP252	1620	450	2520	51	110	240
RP254	1008	280	1380	40	50	240
RP302	2376	660	2460	62	180	240
RP304	1728	480	1320	47	90	240
RP306	1296	360	960	38	50	240
RP354	2772	730	1200	50	140	240
RP356	2340	650	1020	40	110	240

^†Air flow without duct & fittings
