Home/Electrical/Switchgear/Contactors & Equipment/S+S CA7 Auxiliary Contact with 1NO 1Early Make and 1NC 1Late Break Contact Side Mount

Trade Discount 25%

SKU: CA7PAL11

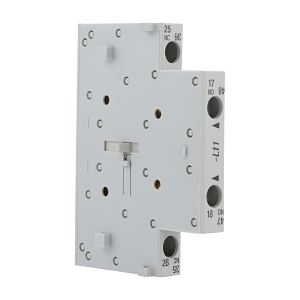

S+S CA7 Auxiliary Contact with 1NO 1Early Make and 1NC 1Late Break Contact Side Mount

$87.90 List price: $116.80

+ −

30 Days Return Delivery Options

Weight: 0.300 kg

Description

Product Name/Title: S+S CA7 Auxiliary Contact with 1NO 1Early Make and 1NC 1Late Break Contact Side Mount

Brand: NHP

SKU: CA7PAL11

Alternatively Known As: Auxiliary Contact Block, CA7 Contact Block, NHP Auxiliary Contact

Technical Specifications

Number of Auxiliary Contacts (NO): 1
Number of Auxiliary Contacts (NC): 1
Rated Insulation Voltage (Ui): 690 V
Rated Operation Current (Ie) at 40°C: 10 A
Rated Operation Current (Ie) at AC 15, 24 V: 6 A
Rated Operation Current (Ie) at AC 15, 120 V: 6 A
Rated Operation Current (Ie) at AC 15, 240 V: 5 A
Rated Operation Current (Ie) at AC 15, 400 V: 3 A
Rated Operation Current (Ie) at DC 12-24 V: 6 A
Rated Operation Current (Ie) at DC 12-110 V: 1 A
Rated Operation Current (Ie) at DC 12-220 V: 0.5 A
Rated Operation Current (Ie) at DC 13-24 V: 5 A
Rated Operation Current (Ie) at DC 13-110 V: 0.68 A
Rated Operation Current (Ie) at DC 13-220 V: 0.32 A
Min Contact Rating Current: 10 mA
Min Contact Rating Voltage: 17 V
Rated Operation Current (Ie) at AC 15, 230 V: 5.5 A
Mounting Method: Side mounting
Dimensions (H x L x W): 100mm x 60mm x 50mm
Weight: 0.3 kg

Key Features

1 Normally Open (NO) contact for early make operation.
1 Normally Closed (NC) contact for late break operation.
Side mounting design for easy installation.

Professional Installation Requirements

Professional installation by a qualified electrician is recommended for optimal performance.

Applications

Industrial: Used in conjunction with contactors for control circuits.
Commercial: Suitable for various automation and control applications.

Standards & Compliance

Complies with AS/NZS 3000 for wiring rules and safety standards.

Environmental Benefits

Designed for energy efficiency in electrical systems.

Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA7 Auxiliary Contact is available now for immediate purchase. Ideal for industrial and commercial automation applications.
