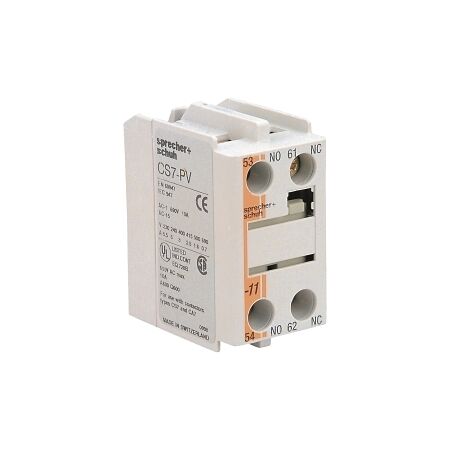

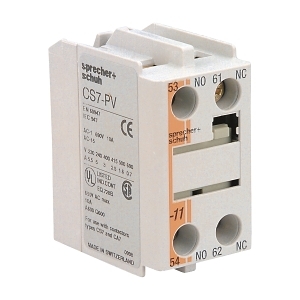

Product Name/Title: S+S CA7 Auxiliary Contact with 1NO Contact and 1NC Contact
Brand: NHP
SKU: CA7PVS11
Alternatively Known As: Auxiliary Contact Block, Contactor Auxiliary Contact
Technical Specifications
- Number of contacts: 1 NO, 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15, 24 V: 6 A
- Rated operation current at AC 15, 120 V: 6 A
- Rated operation current at AC 15, 240 V: 5 A
- Rated operation current at AC 15, 400 V: 3 A
- Rated operation current at DC 12-24 V: 12 A
- Rated operation current at DC 12-110 V: 3.5 A
- Rated operation current at DC 12-220 V: 0.55 A
- Rated operation current at DC 13-24 V: 5 A
- Rated operation current at DC 13-110 V: 1.2 A
- Rated operation current at DC 13-220 V: 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15, 230 V: 5.5 A
- Mounting method: Top mounting
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Rated insulation voltage of 690 V.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control circuits, automation systems
- Commercial: Electrical panels, machinery control
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Designed for energy efficiency in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA7 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial applications.
