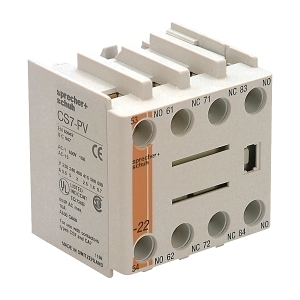

Product Name/Title: S+S CA7 Auxiliary Contact with 2NO Contacts and 2NC Contact
Brand: NHP
SKU: CA7PV22
Alternatively Known As: Auxiliary Contact Block, Contactor Auxiliary Contact
Technical Specifications
- Number of NO contacts: 2
- Number of NC contacts: 2
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (24 V): 6 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 5 A
- Rated operation current at AC 15 (400 V): 3 A
- Rated operation current at DC (12-24 V): 12 A
- Rated operation current at DC (12-110 V): 3.5 A
- Rated operation current at DC (12-220 V): 0.55 A
- Rated operation current at DC (13-24 V): 5 A
- Rated operation current at DC (13-110 V): 1.2 A
- Rated operation current at DC (13-220 V): 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15 (230 V): 5.5 A
- Dimensions (H x L x W): 100mm x 75mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Open (NO) contacts and 2 Normally Closed (NC) contacts.
- Rated insulation voltage of 690 V.
- Top mounting method for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: Electrical installations requiring auxiliary contacts
Standards & Compliance
- Complies with relevant Australian electrical standards.
Environmental Benefits
- Designed for energy efficiency in electrical systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The NHP S+S CA7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
