CA7PVS22

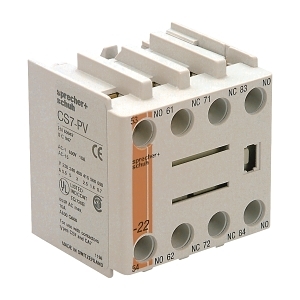

S+S CA7 Auxiliary Contact with 2NO Contacts and 2NC Contact


$100.00 List price: $132.70
+

Weight: 0.500 kg

Product Name/Title: S+S CA7 Auxiliary Contact with 2NO Contacts and 2NC Contact

Brand: NHP

SKU: CA7PVS22

Alternatively Known As: Auxiliary Contact Block, Contactor Accessory

Technical Specifications
  • Number of NO contacts: 2
  • Number of NC contacts: 2
  • Rated insulation voltage (Ui): 690 V
  • Rated operation current (Ie) at 40°C: 10 A
  • Rated operation current (Ie) at AC 15, 24 V: 6 A
  • Rated operation current (Ie) at AC 15, 120 V: 6 A
  • Rated operation current (Ie) at AC 15, 240 V: 5 A
  • Rated operation current (Ie) at AC 15, 400 V: 3 A
  • Rated operation current (Ie) at DC 12-24 V: 12 A
  • Rated operation current (Ie) at DC 12-110 V: 3.5 A
  • Rated operation current (Ie) at DC 12-220 V: 0.55 A
  • Rated operation current (Ie) at DC 13-24 V: 5 A
  • Rated operation current (Ie) at DC 13-110 V: 1.2 A
  • Rated operation current (Ie) at DC 13-220 V: 0.6 A
  • Minimum contact rating current: 5 mA
  • Minimum contact rating voltage: 17 V
  • Rated operation current (Ie) at AC 15, 230 V: 5.5 A
  • Mounting method: Top mounting
  • Dimensions (H x L x W): 100mm x 75mm x 50mm
  • Weight: 0.5 kg
Key Features
  • 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
  • Rated insulation voltage of 690 V.
  • Top mounting method for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Used in conjunction with contactors for control circuits.
  • Commercial: Suitable for various automation applications.
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules.
Environmental Benefits
  • Designed for energy efficiency in electrical systems.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial automation applications.
