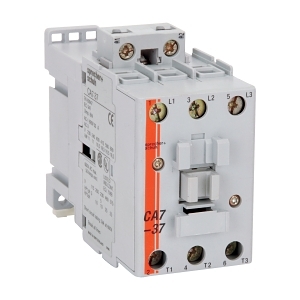

Product Name/Title: S+S CA7 Contactor 18.5kW 3Pole 240VAC Coil
Brand: NHP
SKU: CA73700240VAC
Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor
Technical Specifications
- Rated operation current at AC 3 400 V: 37 A
- Rated operation power at AC 3 400 V: 20 kW
- Rated operation current at AC 1 400 V: 65 A
- Max rated operation voltage: 690 V
- Control supply voltage at AC 50 Hz: 240 V
- Power consumption AC coil pickup: 105 VA
- Power consumption AC coil hold-in: 12.3 VA
- Type of electrical connection: Screw connection
- Mounting method: DIN-rail/screw
- Dimensions (H x L x W): 81mm x 104mm x 45mm
- Weight: 0.49 kg
Key Features
- 3 normally open contacts for main contact.
- Rated operation current of 37 A at 400 V AC.
- IP2X degree of protection.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor control and automation systems
- Commercial: HVAC systems and lighting control
Standards & Compliance
- Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
- Designed for energy efficiency, reducing overall power consumption in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA7 Contactor 18.5kW 3Pole 240VAC Coil is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.
