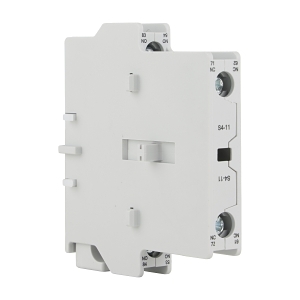

Product Name/Title: S+S CA9 Auxiliary Contact with 1NO Contact and 1NC Contact Inside Position for CA9 116 and 370
Brand: NHP
SKU: CA9S111
Alternatively Known As: Auxiliary Contact Block, CA9 Contact Block
Technical Specifications
- Number of Contacts: 1NO, 1NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 16 A
- Rated Operation Current at AC 15 24 V: 6 A
- Rated Operation Current at AC 15 120 V: 6 A
- Rated Operation Current at AC 15 240 V: 4 A
- Rated Operation Current at AC 15 400 V: 3 A
- Rated Operation Current at DC 13 24 V: 3 A
- Rated Operation Current at DC 13 110 V: 0.55 A
- Rated Operation Current at DC 13 220 V: 0.3 A
- Minimum Contact Rating Current: 50 mA
- Minimum Contact Rating Voltage: 12 V
- Rated Operation Current at AC 15 230 V: 4 A
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Rated insulation voltage of 690 V.
- Compact design for easy integration with CA9 contactors.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Used in conjunction with CA9 contactors for control circuits.
- Commercial: Suitable for various automation and control applications.
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for energy efficiency in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CA9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
