CA9S311

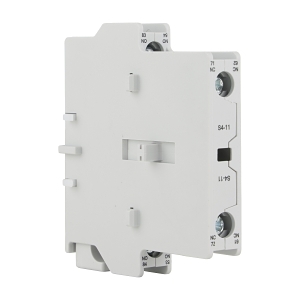

S+S CA9 Auxiliary Contact with 1NO Contact and 1NC Contact Inside Position for CA9 400 and 2650

$61.60 List price: $81.80
+ −
30 Days Return Delivery Options
Brand: NHP

Product Name/Title: S+S CA9 Auxiliary Contact with 1NO Contact and 1NC Contact Inside Position for CA9 400 and 2650

Brand: NHP

SKU: CA9S311

Alternatively Known As: Auxiliary Contact Block, CA9 Contact Block

Technical Specifications
  • Number of Contacts: 1NO, 1NC
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current (AC 15) at 24 V: 6 A
  • Rated Operation Current (AC 15) at 120 V: 6 A
  • Rated Operation Current (AC 15) at 240 V: 4 A
  • Rated Operation Current (AC 15) at 400 V: 3 A
  • Rated Operation Current (DC 13) at 24 V: 6 A
  • Rated Operation Current (DC 13) at 110 V: 0.55 A
  • Rated Operation Current (DC 13) at 220 V: 0.3 A
  • Minimum Contact Rating Current: 50 mA
  • Minimum Contact Rating Voltage: 12 V
  • Dimensions (H x L x W): 50mm x 100mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
  • Rated insulation voltage of 690 V.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Used in conjunction with CA9 contactors for control circuits.
  • Commercial: Suitable for various automation and control applications.
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
