CA91161148WL

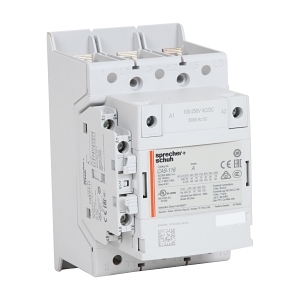

S+S CA9 Contactor 55kW 3Pole 48 to 130VAC and VDC Coil 1NO 1NC Contact Auxiliary with Lugs


$1,723.20 List price: $2,288.20
+

Weight: 1.750 kg

Product Name/Title: S+S CA9 Contactor 55kW 3Pole 48 to 130VAC and VDC Coil 1NO 1NC Contact Auxiliary with Lugs

Brand: NHP

SKU: CA91161148WL

Alternatively Known As: Power Contactor, AC Contactor, Motor Contactor

Technical Specifications
  • Rated operation current at AC 3, 400 V: 116 A
  • Rated operation power at AC 3, 400 V: 55 kW
  • Max rated operation voltage: 1000 V
  • Power consumption AC coil pickup: 170 VA
  • Power consumption DC coil pickup: 130 W
  • Degree of protection: IP00
  • Mounting method: Screw mounting
  • Dimensions (H x L x W): 150mm x 142.5mm x 90mm
  • Weight: 1.75 kg
Key Features
  • 55 kW rated operation power at AC 3, 400 V.
  • 3 normally open contacts and 1 normally closed auxiliary contact.
  • Rated control supply voltage of 48-130 V AC/DC.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor control and automation systems
  • Commercial: HVAC systems and large electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 for wiring rules and electrical installation.
Environmental Benefits
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CA9 Contactor 55kW is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor control.

Non-Returnable & Non-Cancellable
