CS7PV11

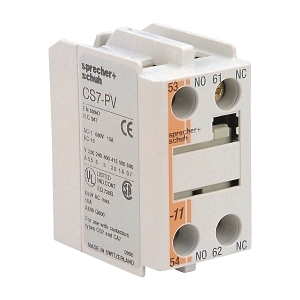

S+S CS7 Auxiliary Contact with 1NO Contact and 1NC Contact Top Mount


$45.10 List price: $59.90
+

Brand: NHP

Product Name/Title: S+S CS7 Auxiliary Contact with 1NO Contact and 1NC Contact Top Mount

Brand: NHP

SKU: CS7PV11

Alternatively Known As: Auxiliary Contact Block, Control Relay Contact

Technical Specifications
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current: 10 A at 40°C
  • Rated Operation Current: 6 A at AC 15, 24 V
  • Rated Operation Current: 5 A at AC 15, 240 V
  • Rated Operation Current: 3 A at AC 15, 400 V
  • Rated Operation Current: 12 A at DC 12-24 V
  • Min Contact Rating Current: 5 mA
  • Mounting Method: Top mounting
  • Dimensions (H x L x W): 50mm x 100mm x 50mm
  • Weight: 0.5 kg
Key Features
  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
  • Top mounting design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control systems, automation equipment
  • Commercial: Building management systems, machinery control
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed for energy efficiency and long-term reliability.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS7 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
