CS7PVB22

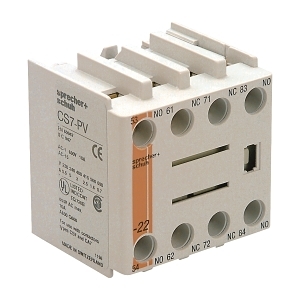

S+S CS7 Auxiliary Contact with 2NO Contacts and 2NC Contact Bifurcated Top Mount


$127.80 List price: $169.60
+

Weight: 0.500 kg

Product Name/Title: S+S CS7 Auxiliary Contact with 2NO Contacts and 2NC Contact Bifurcated Top Mount

Brand: NHP

SKU: CS7PVB22

Alternatively Known As: Auxiliary Contact Block, Control Relay Contact, CS7 Contact Block

Technical Specifications
  • Number of Contacts: 2 NO, 2 NC
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current (AC 15) at 240 V: 3 A
  • Rated Operation Current (DC 12-24 V): 6 A
  • Mounting Method: Top mounting
  • Min Contact Rating Current: 3 mA
  • Min Contact Rating Voltage: 5 V
  • Dimensions (H x L x W): 50mm x 100mm x 100mm
  • Weight: 0.5 kg
Key Features
  • Bifurcated top mount design for easy installation.
  • 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control systems, automation equipment
  • Commercial: Electrical panels, machinery control
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial control applications.
