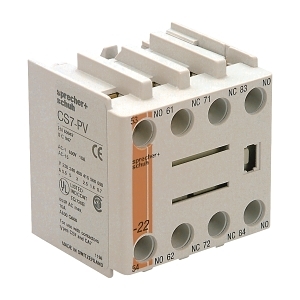

Product Name/Title: S+S CS7 Auxiliary Contact with 2NO Contacts and 2NC Contact Top Mount
Brand: NHP
SKU: CS7PV22
Alternatively Known As: Auxiliary Contact Block, Control Relay Contact, CS7 Contact Block
Technical Specifications
- Number of NO contacts: 2
- Number of NC contacts: 2
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 24 V: 6 A
- Rated operation current at AC 15 120 V: 6 A
- Rated operation current at AC 15 240 V: 5 A
- Rated operation current at AC 15 400 V: 3 A
- Rated operation current at DC 12-24 V: 12 A
- Rated operation current at DC 12-110 V: 3.5 A
- Rated operation current at DC 12-220 V: 0.55 A
- Rated operation current at DC 13-24 V: 5 A
- Rated operation current at DC 13-110 V: 1.2 A
- Rated operation current at DC 13-220 V: 0.6 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Rated operation current at AC 15 230 V: 5.5 A
- Mounting method: Top mounting
- Dimensions (H x L x W): 50mm x 100mm x 100mm
- Weight: 0.5 kg
Key Features
- Top mount design for easy installation.
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Control systems, automation equipment
- Commercial: Electrical panels, machinery control
Standards & Compliance
- Complies with relevant Australian standards for electrical components.
Environmental Benefits
- Designed for efficient operation in control systems.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Auxiliary Contact with 2NO and 2NC Contacts is available now for immediate purchase. Ideal for industrial and commercial control applications.
