CS7E31E110E

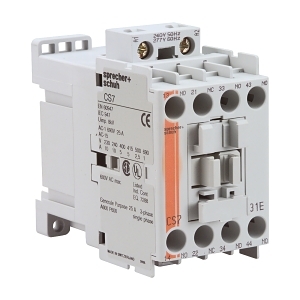

S+S CS7 Control Relay 110 to 125VDC Coil 3NO 1NC Contact


$435.10 List price: $577.80
+

Weight: 0.430 kg

Product Name/Title: S+S CS7 Control Relay 110 to 125VDC Coil 3NO 1NC Contact

Brand: NHP

SKU: CS7E31E110E

Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay

Technical Specifications
  • Number of Auxiliary Contacts (NO): 3
  • Number of Auxiliary Contacts (NC): 1
  • Rated Operation Current (Ie) at 400 V: 20 A
  • Max Rated Operation Voltage (UE) AC: 690 V
  • Voltage Type for Actuating: DC
  • Rated Control Supply Voltage (Us) at DC: 110-125 V
  • Power Consumption DC Coil Pickup: 12 W
  • Power Consumption DC Coil Hold-in: 2.1 W
  • Mounting Method: DIN-rail/screw
  • Connection Type Auxiliary Circuit: Screw connection
  • Dimensions (H x L x W): 105mm x 86.5mm x 45mm
  • Weight: 0.43 kg
Key Features
  • 3 Normally Open (NO) contacts and 1 Normally Closed (NC) contact.
  • Rated for operation at 110 to 125 VDC.
  • DIN-rail or screw mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial automation systems
  • Control circuits for machinery
  • Safety interlocks
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Efficient power consumption reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS7 Control Relay 110 to 125VDC Coil 3NO 1NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
