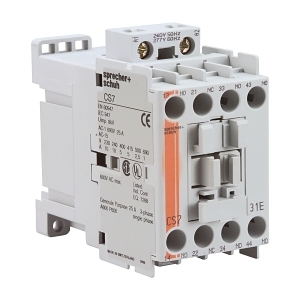

Product Name/Title: S+S CS7 Control Relay 24VAC Coil 3NO 1NC Contact
Brand: NHP
SKU: CS731E24VA
Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 3
- Number of Auxiliary Contacts (NC): 1
- Rated Operation Current: 20 A at 400 V
- Max Rated Operation Voltage: 690 V
- Voltage Type for Actuating: AC
- Control Supply Voltage (50 Hz): 24 V
- Control Supply Voltage (60 Hz): 28 V
- Power Consumption (Coil Pickup): 75 VA
- Power Consumption (Coil Hold-in): 9.5 VA
- Mounting Method: DIN-rail/screw
- Connection Type: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
Key Features
- 3 Normally Open (NO) contacts and 1 Normally Closed (NC) contact.
- Rated operation current of 20 A at 400 V.
- Control supply voltage of 24 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, lighting control
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 24VAC Coil 3NO 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
Non-Returnable & Non-Cancellable
