CS7E22E24VDC

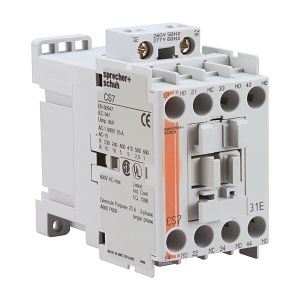

S+S CS7 Control Relay 24VDC Coil 2NO 2NC Contact


$435.10 List price: $577.80
+

Weight: 0.400 kg

Product Name/Title: S+S CS7 Control Relay 24VDC Coil 2NO 2NC Contact

Brand: NHP

SKU: CS7E22E24VDC

Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay

Technical Specifications
  • Number of Auxiliary Contacts: 2 NO, 2 NC
  • Rated Operation Current: 20 A at 400 V
  • Max Rated Operation Voltage: 690 V
  • Control Supply Voltage: 24 V DC
  • Power Consumption (Pickup): 10 W
  • Power Consumption (Hold-in): 1.7 W
  • Mounting Method: DIN-rail/screw
  • Connection Type: Screw connection
  • Dimensions (H x L x W): 81mm x 86.5mm x 45mm
  • Weight: 0.4 kg
Key Features
  • 2 Normally Open (NO) and 2 Normally Closed (NC) contacts.
  • Rated for 20 A operation at 400 V.
  • Compact design for DIN-rail mounting.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, machinery control
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS7 Control Relay 24VDC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
