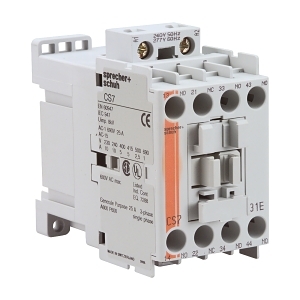

Product Name/Title: S+S CS7 Control Relay 32VAC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS722E32VA
Alternatively Known As: Control Relay, Contactor Relay, CS7 Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current (Ie) at 400 V: 20 A
- Max Rated Operation Voltage (Ue) AC: 690 V
- Voltage Type for Actuating: AC
- Control Supply Voltage (Us) at AC 50 Hz: 32 V
- Power Consumption AC Coil Pickup: 75 VA
- Power Consumption AC Coil Hold-in: 9.5 VA
- Control Supply Voltage (Us) at AC 60 Hz: 36 V
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.39 kg
Key Features
- 2 Normally Open (NO) and 2 Normally Closed (NC) contacts
- Rated operation current of 20 A
- Control supply voltage of 32 V AC
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits for machinery
- Building management systems
Standards & Compliance
- Complies with relevant Australian standards for electrical equipment.
Environmental Benefits
- Energy-efficient operation reduces power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 32VAC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
