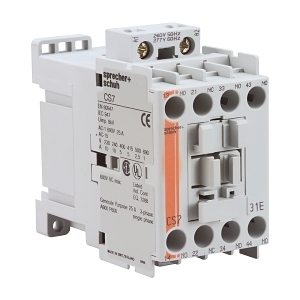

Product Name/Title: S+S CS7 Control Relay 48 to 72VDC Coil 4NC Contact
Brand: NHP
SKU: CS7E04E48E
Alternatively Known As: Control Relay, DC Control Relay, Industrial Relay
Technical Specifications
- Number of auxiliary contacts (NC): 4
- Number of auxiliary contacts (NO): 0
- Rated operation current (Ie) at 400V: 20 A
- Max rated operation voltage (Ue) AC: 690 V
- Voltage type for actuating: DC
- Rated control supply voltage (Us) at DC: 48-72 V
- Power consumption DC coil pickup: 10 W
- Power consumption DC coil hold-in: 1.9 W
- Mounting method: DIN-rail/screw
- Connection type auxiliary circuit: Screw connection
- Dimensions (H x L x W): 81mm x 86.5mm x 45mm
- Weight: 0.43 kg
Key Features
- 4 normally closed contacts for reliable control.
- Rated for operation at 48 to 72VDC.
- DIN-rail mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial automation systems
- Control circuits in machinery
- Safety interlocks
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient operation with low power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS7 Control Relay 48 to 72VDC Coil 4NC Contact is available now for immediate purchase. Ideal for industrial automation and control applications.
Non-Returnable & Non-Cancellable
