CS8P11E

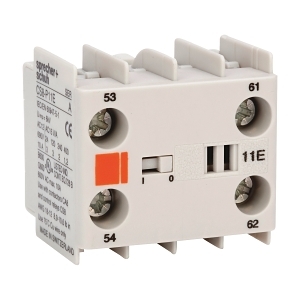

S+S CS8 Auxiliary Contact with 1NO Contact and 1NC Contact

$61.60 List price: $81.80
+ −
30 Days Return Delivery Options
Weight: 0.300 kg

Product Name/Title: S+S CS8 Auxiliary Contact with 1NO Contact and 1NC Contact

Brand: NHP

SKU: CS8P11E

Alternatively Known As: Auxiliary Contact Block, Control Relay Contact

Technical Specifications
  • Rated Insulation Voltage (Ui): 690 V
  • Rated Operation Current (Ie) at 40°C: 10 A
  • Rated Operation Current (Ie) at AC 15 24 V: 3 A
  • Rated Operation Current (Ie) at AC 15 120 V: 3 A
  • Rated Operation Current (Ie) at AC 15 240 V: 2 A
  • Rated Operation Current (Ie) at AC 15 400 V: 1.2 A
  • Rated Operation Current (Ie) at DC 13 24 V: 2.3 A
  • Rated Operation Current (Ie) at DC 13 110 V: 0.55 A
  • Rated Operation Current (Ie) at DC 13 220 V: 0.27 A
  • Min Contact Rating Current: 2 mA
  • Min Contact Rating Voltage: 15 V
  • Rated Operation Current (Ie) at AC 15 230 V: 2 A
  • Mounting Method: Top mounting
  • Dimensions (H x L x W): 30mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile control.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control systems, automation equipment
  • Commercial: Electrical panels, machinery control
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable design reduces the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS8 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
