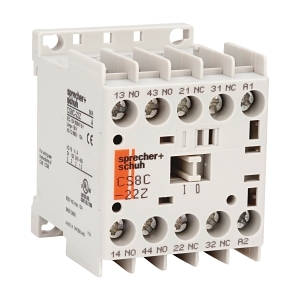

Product Name/Title: S+S CS8 Relay 110VDC Coil 2NO 2NC Contact
Brand: NHP
SKU: CS8C22Z110VDC
Alternatively Known As: Control Relay, Mini Relay, DIN Rail Relay
Technical Specifications
- Number of Auxiliary Contacts (NO): 2
- Number of Auxiliary Contacts (NC): 2
- Rated Operation Current (Ie) at 400V: 10 A
- Max Rated Operation Voltage (Ue) AC: 690 V
- Voltage Type for Actuating: DC
- Control Supply Voltage (Us) at DC: 110 V
- Power Consumption DC Coil Pickup: 3 W
- Power Consumption DC Coil Hold-in: 3 W
- Mounting Method: DIN-rail/screw
- Connection Type Auxiliary Circuit: Screw connection
- Dimensions (H x L x W): 56mm x 53mm x 45mm
- Weight: 0.2 kg
Key Features
- Control relay with 2 normally open and 2 normally closed contacts.
- Compact design suitable for DIN-rail mounting.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Automation systems, control panels
- Commercial: HVAC systems, machinery control
- General: Any application requiring reliable relay control
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Energy-efficient operation reduces overall power consumption.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S CS8 Relay 110VDC Coil 2NO 2NC Contact is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable control.
