CS831Z240VAC

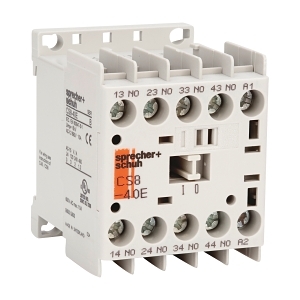

S+S CS8 Relay 240VAC Coil 3NO 1NC Contact


$192.40 List price: $255.50
+

Weight: 0.500 kg

Product Name/Title: S+S CS8 Relay 240VAC Coil 3NO 1NC Contact

Brand: NHP

SKU: CS831Z240VAC

Alternatively Known As: Control Relay, Mini Relay, Switching Relay

Technical Specifications
  • Nominal Current: 6 A
  • Number of Contacts: 3 NO, 1 NC
  • Voltage Type: AC
  • Control Supply Voltage: 240 V at AC 50/60 Hz
  • Type of Electric Connection: Screw connection
  • Degree of Protection: IP20
  • Dimensions (H x L x W): 30mm x 60mm x 50mm
  • Weight: 0.5 kg
Key Features
  • Mini control relay with 3 normally open and 1 normally closed contact.
  • Screw connection for easy installation.
  • IP20 rated for protection against solid objects.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Automation systems, control panels
  • Commercial: HVAC systems, lighting control
  • General: Any application requiring relay control
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CS8 Relay 240VAC Coil 3NO 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial control applications.
