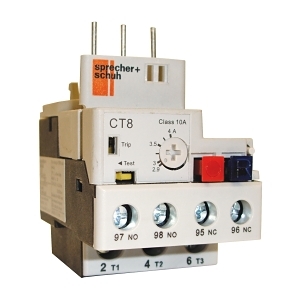

Product Name/Title: S+S CT8 Thermal Overload Relay 3.5 to 4.8A Direct Mount Manual or Auto Reset for CA8 9 and 12A
Brand: NHP
SKU: CT8B48
Alternatively Known As: Thermal Overload Relay, Motor Protection Relay, CT8 Relay
- Adjustable Current Range: 3.5-4.8 A
- Release Class: CLASS 10 A
- Max Rated Operation Voltage: 690 V
- Number of Auxiliary Contacts (NC): 1
- Number of Auxiliary Contacts (NO): 1
- Automatic Reset Function: Yes
- Push Button Reset Function: Yes
- Electrical Connection Type: Screw connection
- Mounting Method: Direct attachment
- Dimensions (H x L x W): 65mm x 64mm x 45mm
- Weight: 0.12 kg
- Adjustable current range from 3.5 to 4.8 A.
- Manual or automatic reset options.
- Direct mount design for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection in various applications
- Commercial: Equipment requiring thermal overload protection
- Complies with relevant Australian standards for electrical safety.
- Designed to enhance equipment longevity and reduce energy waste.
1 year warranty against manufacturing defects.
The S+S CT8 Thermal Overload Relay is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
