CT8B63

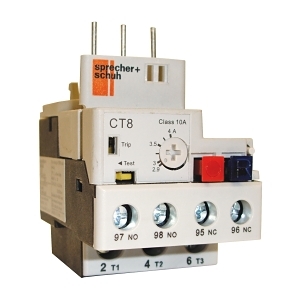

S+S CT8 Thermal Overload Relay 4.5 to 6.3A Direct Mount Manual or Auto Reset for CA8 9 and 12A


$60.40 List price: $80.20
+

Weight: 0.120 kg

Product Name/Title: S+S CT8 Thermal Overload Relay 4.5 to 6.3A Direct Mount Manual or Auto Reset for CA8 9 and 12A

Brand: NHP

SKU: CT8B63

Alternatively Known As: Thermal Overload Relay, Motor Protection Relay

Technical Specifications
  • Adjustable Current Range: 4.5-6.3 A
  • Release Class: CLASS 10 A
  • Max Rated Operation Voltage: 690 V
  • Number of Auxiliary Contacts (NC): 1
  • Number of Auxiliary Contacts (NO): 1
  • Automatic Reset Function: Yes
  • Push Button Reset Function: Yes
  • Electrical Connection Type: Screw connection
  • Mounting Method: Direct attachment
  • Dimensions (H x L x W): 65mm x 64mm x 45mm
  • Weight: 0.12 kg
Key Features
  • Adjustable current range from 4.5 to 6.3 A.
  • Manual or automatic reset options.
  • Direct mount design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring thermal overload protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed to enhance equipment longevity by preventing overheating.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S CT8 Thermal Overload Relay 4.5 to 6.3A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
