KT5PE111

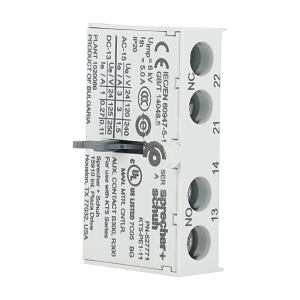

S+S KT5 Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount

$46.70 List price: $62.00
+ −
30 Days Return Delivery Options
Weight: 0.300 kg

Product Name/Title: S+S KT5 Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount

Brand: NHP

SKU: KT5PE111

Alternatively Known As: Motor Protection Auxiliary Contact, KT5 Auxiliary Contact, NHP Auxiliary Contact

Technical Specifications
  • Number of Contacts: 1 NO, 1 NC
  • Rated Insulation Voltage: 250 V
  • Rated Operation Current at 40°C: 5 A
  • Rated Operation Current at AC 15 (24 V): 3 A
  • Rated Operation Current at AC 15 (120 V): 3 A
  • Rated Operation Current at AC 15 (240 V): 1.5 A
  • Rated Operation Current at DC 13 (24 V): 1 A
  • Rated Operation Current at DC 13 (125 V): 0.27 A
  • Rated Operation Current at DC 13 (250 V): 0.11 A
  • Minimum Contact Rating Current: 5 mA
  • Minimum Contact Rating Voltage: 17 V
  • Mounting Method: Front fastening
  • Dimensions (H x L x W): 50mm x 100mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
  • Rated insulation voltage of 250 V.
  • Front mounting method for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection applications
  • Commercial: Equipment control and automation
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Efficient control of electrical loads reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S KT5 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for motor protection and control applications.
