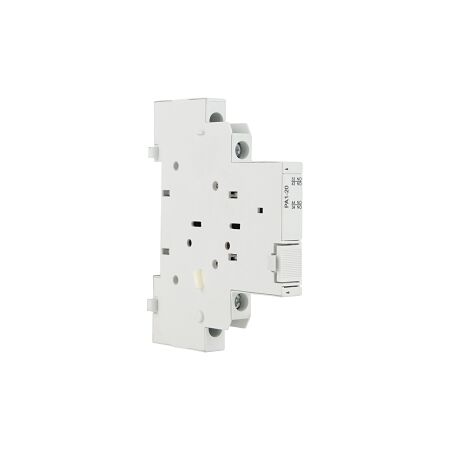

Product Name/Title: S+S KT5 Auxiliary Contact with 2NO Contacts Right Side Mount
Brand: NHP
SKU: KT5PA120
Alternatively Known As: Auxiliary Contact Block, KT5 Auxiliary Contact
Technical Specifications
- Number of Contacts: 2 NO
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 6 A
- Rated Operation Current at AC 15 24 V: 6 A
- Rated Operation Current at AC 15 120 V: 6 A
- Rated Operation Current at AC 15 240 V: 4 A
- Rated Operation Current at AC 15 400 V: 3 A
- Rated Operation Current at DC 13 24 V: 2 A
- Rated Operation Current at DC 13 125 V: 0.55 A
- Rated Operation Current at DC 13 250 V: 0.27 A
- Min Contact Rating Current: 5 mA
- Min Contact Rating Voltage: 17 V
- Mounting Method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.2 kg
Key Features
- 2 Normally Open (NO) contacts for reliable operation.
- Rated insulation voltage of 690 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Designed for energy efficiency and reduced operational costs.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT5 Auxiliary Contact with 2NO Contacts Right Side Mount is available now for immediate purchase. Ideal for industrial and commercial applications.
Non-Returnable & Non-Cancellable
