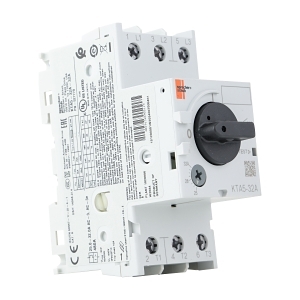

Product Name/Title: S+S KT5 Motor Protection Circuit Breaker 25 to 32A
Brand: NHP
SKU: KTA532AC32
Alternatively Known As: Motor Protection Circuit Breaker, KT5 Circuit Breaker, NHP Circuit Breaker
Technical Specifications
- Rated Permanent Current (Iu): 32 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 25-32 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (LCU) at 400 V AC: 15 kA
- Rated Operation Power at AC 3 400 V: 15 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.8mm x 85.5mm x 45mm
- Weight: 0.33 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 25 to 32 A.
- IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in manufacturing and processing plants
- Commercial: Equipment protection in commercial facilities
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances equipment longevity by preventing overload damage.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The S+S KT5 Motor Protection Circuit Breaker 25 to 32A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
