KT7PA111

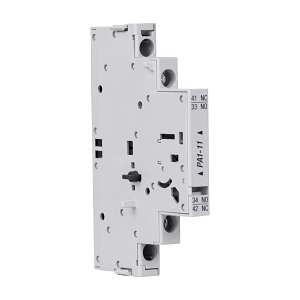

S+S KT7 Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount


$98.20 List price: $130.40
+

Brand: NHP

Product Name/Title: S+S KT7 Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount

Brand: NHP

SKU: KT7PA111

Alternatively Known As: KT7 Auxiliary Contact, Motor Protection Auxiliary Contact

Technical Specifications
  • Number of Contacts: 1NO, 1NC
  • Rated Operation Current at 40°C: 10 A
  • Rated Operation Current at AC 15 24V: 6 A
  • Rated Operation Current at AC 15 120V: 5 A
  • Rated Operation Current at AC 15 240V: 3 A
  • Rated Operation Current at AC 15 400V: 2 A
  • Rated Operation Current at DC 13 24V: 2 A
  • Rated Operation Current at DC 13 110V: 0.5 A
  • Rated Operation Current at DC 13 220V: 0.25 A
  • Mounting Method: Side mounting
  • Dimensions (H x L x W): 30mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 1 Normally Open (NO) and 1 Normally Closed (NC) contact for versatile applications.
  • Side mounting design for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection and control systems
  • Commercial: Equipment requiring auxiliary contacts for operation
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Efficient control of electrical loads reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S KT7 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for motor protection and control applications.
