KTC725S4A

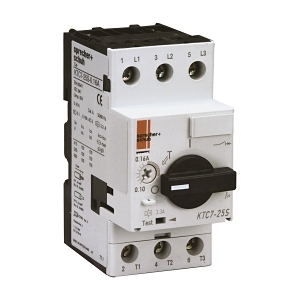

S+S KT7 Motor Protection Circuit Breaker 2.5 to 4.0A

$518.50 List price: $688.60
+ −
30 Days Return Delivery Options
Weight: 0.320 kg

Product Name/Title: S+S KT7 Motor Protection Circuit Breaker 2.5 to 4.0A

Brand: NHP

SKU: KTC725S4A

Alternatively Known As: Motor Protection Circuit Breaker, Thermal Magnetic Circuit Breaker

Technical Specifications
  • Rated Permanent Current (Iu): 4 A
  • Max Rated Operation Voltage (Ue): 690 V
  • Rated Short Circuit Breaking Capacity (LCU at 400 V AC): 100 kA
  • Rated Operation Power at AC 3, 400 V: 1.5 kW
  • Type of Control Element: Turn handle
  • Type of Electrical Connection of Main Circuit: Screw connection
  • Number of Poles: 3
  • Degree of Protection: IP2X
  • Max Tightening Torque: 2.5 Nm
  • Dimensions (H x L x W): 90mm x 74.5mm x 45mm
  • Weight: 0.32 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 2.5 to 4 A.
  • High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring overload protection
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S KT7 Motor Protection Circuit Breaker 2.5 to 4.0A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
