KT9PE111

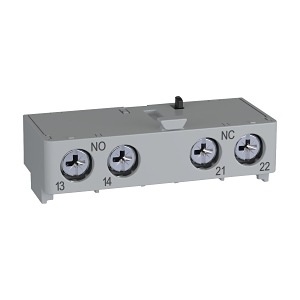

S+S KT9 Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount

$69.20 List price: $92.00
+ −
30 Days Return Delivery Options
Weight: 0.300 kg

Product Name/Title: S+S KT9 Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount

Brand: NHP

SKU: KT9PE111

Alternatively Known As: KT9 Auxiliary Contact, Motor Protection Auxiliary Contact, NHP Auxiliary Contact

Technical Specifications
  • Number of Contacts: 1 NO, 1 NC
  • Rated Insulation Voltage: 250 V
  • Rated Operation Current at 40°C: 5 A
  • Rated Operation Current at AC 15 24 V: 4 A
  • Rated Operation Current at AC 15 120 V: 3 A
  • Rated Operation Current at AC 15 240 V: 1.5 A
  • Rated Operation Current at DC 13 24 V: 1.2 A
  • Rated Operation Current at DC 13 125 V: 0.22 A
  • Rated Operation Current at DC 13 250 V: 0.11 A
  • Mounting Method: Front fastening
  • Dimensions (H x L x W): 30mm x 70mm x 50mm
  • Weight: 0.3 kg
Key Features
  • 1 Normally Open (NO) contact and 1 Normally Closed (NC) contact.
  • Front mounting for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection and control systems
  • Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Efficient control of electrical loads reduces energy waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S KT9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
