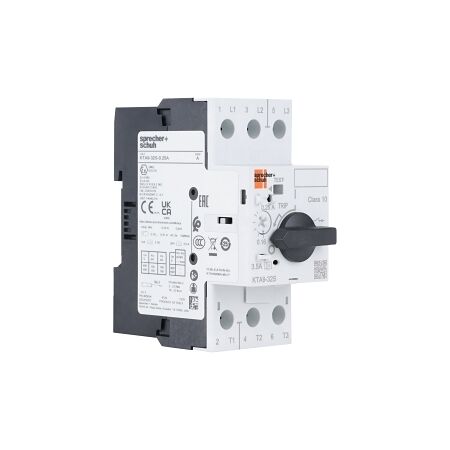

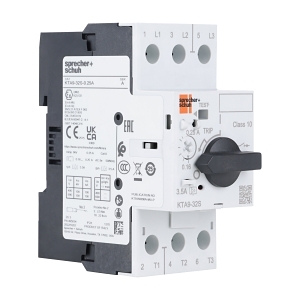

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 1.0 to 1.6A
Brand: NHP
SKU: KTA932S1P6A
Alternatively Known As: Motor Protection Breaker, Circuit Breaker, Thermal Circuit Breaker
Technical Specifications
- Rated Permanent Current (Iu): 1.6 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (LCU at 400 V AC): 100 kA
- Rated Operation Power at AC 3, 400 V: 0.55 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
- Weight: 0.35 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 1 to 1.6 A.
- High short-circuit breaking capacity of 100 kA.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical systems requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances equipment longevity by preventing overload damage.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 1.0 to 1.6A is available now for immediate purchase. Ideal for industrial and commercial applications requiring motor protection.
