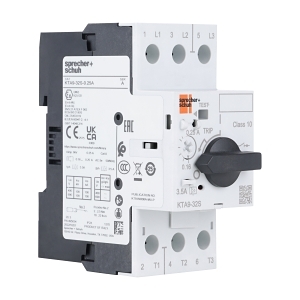

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 2.5 to 4.0A
Brand: NHP
SKU: KTA932S4P0A
Alternatively Known As: Motor Protection Circuit Breaker, KT9 Circuit Breaker, NHP Motor Breaker
Technical Specifications
- Rated Permanent Current (Iu): 4 A
- Switch Off Technique: Thermomagnetic
- Long Time Overload Protection Adjustment Range: 2.5-4 A
- Max Rated Operation Voltage (Ue): 690 V
- Rated Short Circuit Breaking Capacity (Icu) at 400 V AC: 100 kA
- Rated Operation Power at AC 3 400 V: 1.5 kW
- Type of Control Element: Turn handle
- Type of Electrical Connection of Main Circuit: Screw connection
- Number of Poles: 3
- Degree of Protection: IP2X
- Max Tightening Torque: 2.5 Nm
- Dimensions (H x L x W): 96.3mm x 83.4mm x 45mm
- Weight: 0.35 kg
Key Features
- Thermomagnetic switch-off technique for reliable protection.
- Adjustable long-time overload protection from 2.5 to 4 A.
- High breaking capacity of 100 kA at 400 V AC.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection in various machinery and equipment
- Commercial: Electrical systems requiring overload protection
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Motor Protection Circuit Breaker KTA9 32S Frame C 2.5 to 4.0A is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
