KTC940H2P5A

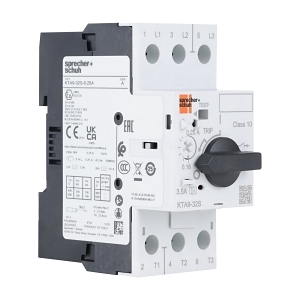

S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 1.6 to 2.5A


$475.10 List price: $630.80
+

Weight: 0.390 kg

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 1.6 to 2.5A

Brand: NHP

SKU: KTC940H2P5A

Alternatively Known As: Motor Protection Circuit Breaker, Circuit Breaker for Motors

Technical Specifications
  • Rated Permanent Current: 2.5 A
  • Max Rated Operation Voltage: 690 V
  • Rated Operation Power at AC 3, 400 V: 0.75 kW
  • Number of Poles: 3
  • Degree of Protection: IP2X
  • Max Tightening Torque: 2.5 Nm
  • Type of Control Element: Turn handle
  • Type of Electrical Connection: Screw connection
  • Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
  • Weight: 0.39 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 1.6 to 2.5 A.
  • Rated short circuit breaking capacity of 100 kA.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery
  • Commercial: Equipment requiring reliable circuit protection
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Designed to enhance safety and reliability in electrical systems.
Warranty Information

Standard warranty applies.

Available Now

The S+S KT9 Motor Protection Circuit Breaker KTC940H is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
