KTC940H25A

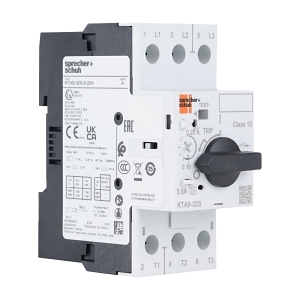

S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 18 to 25A


$713.40 List price: $947.30
+

Weight: 0.410 kg

Product Name/Title: S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 18 to 25A

Brand: NHP

SKU: KTC940H25A

Alternatively Known As: Motor Protection Breaker, Circuit Breaker, Thermal Circuit Breaker

Technical Specifications
  • Rated Permanent Current: 25 A
  • Max Rated Operation Voltage: 690 V
  • Rated Short Circuit Breaking Capacity: 65 kA at 400 V AC
  • Rated Operation Power: 11 kW at AC 3 400 V
  • Number of Poles: 3
  • Type of Control Element: Turn handle
  • Type of Electrical Connection: Screw connection
  • Max Tightening Torque: 2.5 Nm
  • Dimensions (H x L x W): 96.3mm x 93.7mm x 45mm
  • Weight: 0.41 kg
Key Features
  • Thermomagnetic switch-off technique for reliable protection.
  • Adjustable long-time overload protection from 18 to 25 A.
  • IP2X degree of protection ensuring safety against accidental contact.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Motor protection in various machinery and equipment
  • Commercial: Suitable for HVAC systems and other electrical installations
Standards & Compliance
  • Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
  • Enhances energy efficiency by protecting motors from overloads and faults.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The S+S KT9 Motor Protection Circuit Breaker KTC940H Frame D 18 to 25A is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
