13MM-R80P

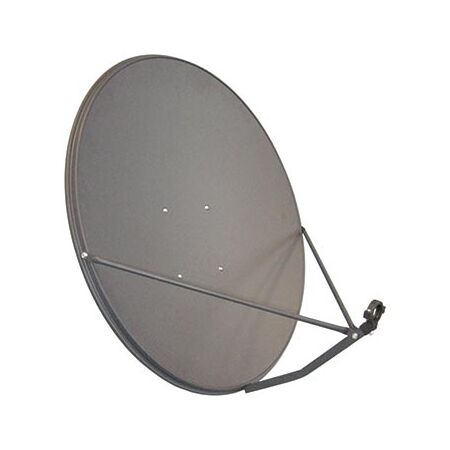

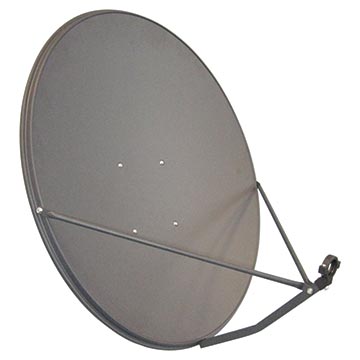

Satellite Dish 80cm


$134.50 List price: $175.20
+

Weight: 12.000 kg
Matchmaster has a broad range of Satellite Dishes, Mounts and accessories to suit all Ku-Band reception systems including Pay-TV and VAST services
Matchmaster can offer simple travel kits for Caravaners through to complex Commercial reception systems.View More Satellites
Heavy DutyKU BandHigh GainVAST ReceptionRolled Edges for added strength
Reception Frequency 11.70~12.75GHz
Output Frequency 950~2050MHz
L.O. Frequency 10.7GHz
Gain 60dB
Gain Flatness In 54MHz Bandwidth ±1.0dB
Across the Band 11.7~12.75GHz ±2.5dB
Gain Difference(Between V & H Polarity) 3dB maximum
Noise Figure 0.8dB
Image Rejection 40dB minimum
1dB Compression Point 0dBm
3rd Order Modulation(Two Tones) Intercept Point 50dBc minimum
L.O. Stability Room Temperature ±300KHz
Over Temperature ±500KHz
L.O. Phase Noise @ 1KHz Offset -55dBc/Hz maximum
@ 10KHz Offset -80dBc/Hz maximum
@ 100KHz Offset -90dBc/Hz maximum
L.O. Leakage @ Input -50dBm
Output VSWR 2.0:1
Cross-Polar Isolation 25dBm
Polarity Switching Voltage Vertical 11.5~14V
Horizontal 16~19V
DC Current Consumption Input Voltage 110mA
Mobile Interference Suppression -10dBm Output @ Test Fixture Antenna Assemble Stage -40dBm
Operating Temperature -30~+70°C
