Description

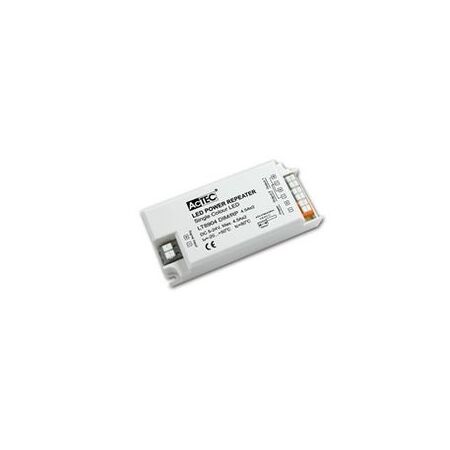

SINGLE COLOUR LED POWER REPEATER
Features
- Design for extending single colour LED strip lights
- With the repeater, one single colour controller controls multiple connections of LED strips
- Each repeater provides two channel output
- Each channel has a Max output current of 4.5A
- 216W Max power output at 24V
technical specification
Model No | Ta | Input/Output Voltage | Max Output Power at 24V | Max Output Current | Dimensions Controller L x W x H | Fixing Centre |
---|---|---|---|---|---|---|
LT8904 DIM/RP | -20~50ºC | 5-24V | 108 x 2 Channels | 4.5 x 2 Channels | 105 x 46 x 28 mm | 97 mm |
