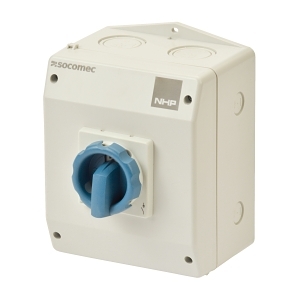

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Grey, Handle - Blue, 3P 80A
Brand: NHP
SKU: ISO380PGS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
Technical Specifications
- Rated Permanent Current: 80 A
- Number of Poles: 3
- Frequency: 50/60 Hz
- Rated Operation Current: 23.5 A at AC-23A 690 V
- Rated Short Time Withstand Current: 2.52 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Type of Electrical Connection: Screw connection
- Rated Operating Voltage: 690 V
- Number of Auxiliary Contacts: 0 NC, 0 NO, 0 CO
- Motor Drive Integrated: No
- Material Housing: Plastic
- Degree of Protection: IP65
- NEMA Rating: 4X
- Interlockable: No
- Number of Switches: 1
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 2.5-25 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.72 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- Screw connection for reliable electrical connections.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Any application requiring safe electrical isolation
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Durable materials reduce the need for frequent replacements.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable electrical isolation.
