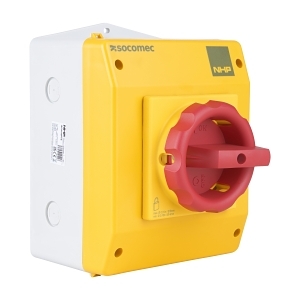

Product Name/Title: Socomec ISO Enclosed Isolator, IP 65 Plastic Yellow, Handle - Red, 4P 100A
Brand: NHP
SKU: ISO4100PYS
Alternatively Known As: ISO Switch, Isolator Switch, Enclosed Isolator
Technical Specifications
- Rated Permanent Current: 100 A
- Number of Poles: 4
- Frequency: 50/60 Hz
- Rated Operation Current: 34 A at AC 23A 690 V
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 690 V
- Rated Impulse Withstand Voltage: 6 kV
- Electrical Connection Type: Screw connection
- Rated Operating Voltage: 690 V
- Auxiliary Contacts: 0 Normally Closed, 0 Normally Open, 0 Change Over
- Motor Drive Integrated: No
- Interlockable: No
- Padlock Locking: Yes
- Connectable Conductor Cross Section: 4-35 mm²
- Dimensions (H x L x W): 176mm x 104mm x 146mm
- Weight: 0.83 kg
Key Features
- IP65 rated for protection against dust and water ingress.
- 4 poles for versatile electrical applications.
- Padlock locking feature for enhanced safety.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Machinery and equipment isolation
- Commercial: Electrical distribution systems
- General: Safety isolation for electrical circuits
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Durable plastic housing reduces environmental impact.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ISO Enclosed Isolator is available now for immediate purchase. Ideal for industrial and commercial electrical isolation applications.
