NSYS3D4625P

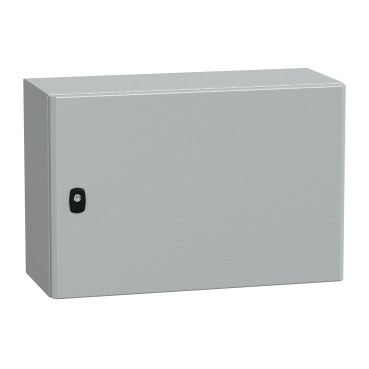

Spacial S3D, Wall mounted steel enclosure, plain door, with mounting plate, 400x600x250mm, IP66, IK10


$281.10 List price: $421.70
+

Weight: 14.500 kg

Product Name/Title: Spacial S3D, Wall mounted steel enclosure, plain door, with mounting plate, 400x600x250mm, IP66, IK10

Brand: Clipsal

SKU: NSYS3D4625P

Alternatively Known As: Wall Mounted Steel Enclosure, Industrial Enclosure, IP66 Enclosure

Technical Specifications
  • Material: Steel with epoxy-polyester powder finish
  • Mounting plate: Galvanised steel
  • Door type: Plain, reversible opening
  • Lock type: 3 points lock, 3 mm double-bar
  • NEMA rating: NEMA 4X/13
  • Dimensions (H x L x W): 400mm x 250mm x 600mm
  • Weight: 14.5 kg
Key Features
  • IP66 rated for protection against dust and water.
  • IK10 rated for impact resistance.
  • Plain door with a 3-point lock for enhanced security.
  • Wall-mounted design with a mounting plate for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and compliance.
Applications
  • Industrial: Suitable for various applications requiring robust and secure enclosures.
Standards & Compliance
  • Complies with IEC 62208 for safety and performance standards.
Environmental Benefits
  • Complies with IEC 62208 for safety and performance standards.
Warranty Information

18 months warranty against manufacturing defects.

Available Now

The Clipsal Spacial S3D Wall Mounted Steel Enclosure is available now for immediate purchase. Ideal for industrial applications requiring robust and secure enclosures.

NSYS3D4625P (NSYS3D4625P, 224 Kb) [Download]
