M25SB

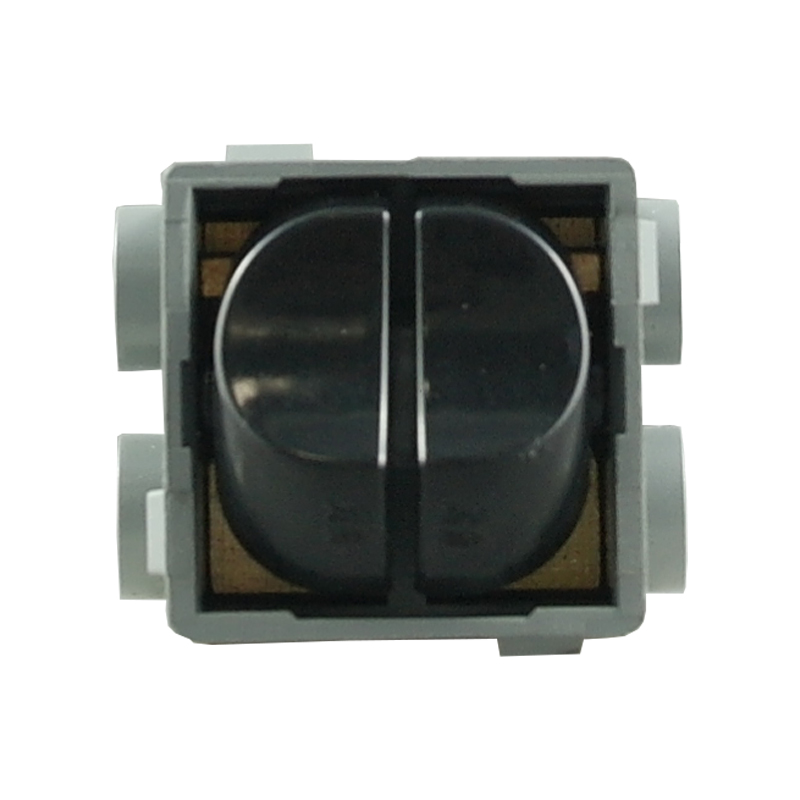

Split Mech 250V AC 25A BLACK


$21.30 List price: $27.80
+

Weight: 0.300 kg

Product Name/Title: Split Mech 250V AC 25A BLACK

Brand: Connected Switchgear

SKU: M25SB

Alternatively Known As: 25A Split Mechanism, AC Mechanism, Black Switch Mechanism

Technical Specifications
  • Product Code: M25SB
  • Voltage: 250V
  • Current: 25A
  • Power: AC
  • Poles: 1 Pole
  • Configuration: Vertical/Horizontal
  • Material: Polycarbonate
  • Approval: SAA Approved
  • Dimensions (H x L x W): 40mm x 80mm x 80mm
  • Weight: 0.3 kg
Key Features
  • 25A split mechanism rated at 250V AC.
  • Manufactured from polycarbonate material.
  • High percentage silver and nickel coated switch contacts to prevent arcing.
  • Solid brass terminal screws.
  • Compatible with Clipsal plates.
Professional Installation Requirements
  • Professional installation by an authorized electrician is recommended for optimal safety.
Applications
  • Residential: Homes, apartments, offices
  • Commercial: Retail, hospitality, workspaces
Standards & Compliance
  • Complies with AS/NZS 3133:2013+A1-2 and AS/NZS 3100:2017+A1-3.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

5 years warranty against manufacturing defects.

Available Now

The Split Mech 250V AC 25A BLACK is available now for immediate purchase. Ideal for residential and commercial applications.

M25SB (Mechanisms-1.pdf, 1,536 Kb) [Download]
