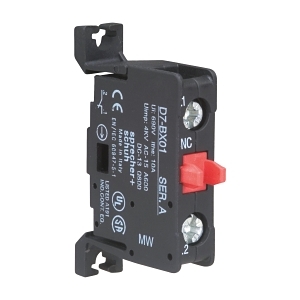

Product Name/Title: Sprecher and Schuh D7 Contact Block Base Mount 1 NC for 22.5mm Pushbutton Operators
Brand: NHP
SKU: D7BX01
Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, Base Mount Contact Block
Technical Specifications
- Number of contacts: 1 NC
- Rated insulation voltage: 690 V
- Rated operation current at 40°C: 10 A
- Rated operation current at AC 15 (120 V): 6 A
- Rated operation current at AC 15 (240 V): 3 A
- Rated operation current at AC 15 (400 V): 1.8 A
- Rated operation current at DC 13 (125 V): 0.55 A
- Rated operation current at DC 13 (250 V): 0.27 A
- Minimum contact rating current: 5 mA
- Minimum contact rating voltage: 17 V
- Mounting method: Base mounting
- Dimensions (H x L x W): 22.5mm x 45mm x 45mm
- Weight: 0.2 kg
Key Features
- Base mounting design for easy installation.
- 1 normally closed contact for reliable operation.
Professional Installation Requirements
- Professional installation is recommended for optimal performance and safety.
Applications
- Industrial: Control panels, machinery, and automation systems
- Commercial: Equipment requiring reliable control mechanisms
Standards & Compliance
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Sprecher and Schuh D7 Contact Block Base Mount 1 NC for 22.5mm Pushbutton Operators is available now for immediate purchase. Ideal for industrial and commercial applications.
