D7PX01S

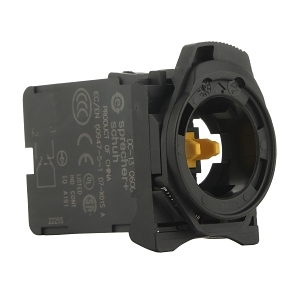

Sprecher and Schuh D7 Contact Block Screw 1 N.C. Self Monitoring and Plastic Plate for 22.5mm Pb


$53.10 List price: $70.60
+

Brand: NHP

Product Name/Title: Sprecher and Schuh D7 Contact Block Screw 1 N.C. Self Monitoring and Plastic Plate for 22.5mm Pb

Brand: NHP

SKU: D7PX01S

Alternatively Known As: D7 Contact Block, Auxiliary Contact Block, N.C. Contact Block

Technical Specifications
  • Number of Contacts: 1 N.C.
  • Rated Insulation Voltage: 690 V
  • Rated Operation Current (40°C): 10 A
  • Rated Operation Current (AC 15, 120 V): 6 A
  • Rated Operation Current (AC 15, 240 V): 3 A
  • Rated Operation Current (AC 15, 400 V): 1.8 A
  • Rated Operation Current (DC 13, 125 V): 0.55 A
  • Rated Operation Current (DC 13, 250 V): 0.27 A
  • Min Contact Rating Current: 5 mA
  • Min Contact Rating Voltage: 17 V
  • Dimensions (H x L x W): 22.5mm x 50mm x 22.5mm
  • Weight: 0.3 kg
Key Features
  • Self-monitoring functionality for enhanced reliability.
  • Compatible with 22.5mm operators.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels and machinery
  • Commercial: Automation systems and equipment
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Complies with relevant electrical safety standards.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Contact Block Screw 1 N.C. is available now for immediate purchase. Ideal for industrial and commercial automation applications.
