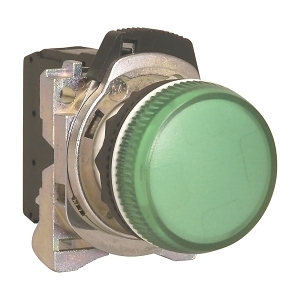

Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 240V AC Green Lens


$65.90 List price: $87.40
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 240V AC Green Lens

Brand: NHP

SKU: D7MP3MN7G

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC
  • Rated Current: 0.02 A
  • Rated Frequency: 50-60 Hz
  • Lamp Power: 1 W
  • Operating Voltage: 240 V
  • Colour Lens: Green
  • Degree of Protection: IP65/IP66
  • Material Front Ring: Metal
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0.01 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a green lens.
  • IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5 mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
