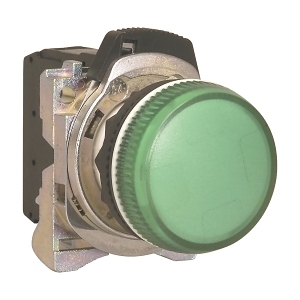

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5 mm Complete Metal LED 24V AC DC Green Lens
Brand: NHP
SKU: D7MP3MN3G
Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light
- Operating Voltage: 24 V
- Rated Current: 0.03 A
- Lamp Power: 1 W
- Rated Frequency: 50-60 Hz
- Luminous Intensity: 0.01 cd
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Hole Diameter: 22.5 mm
- Diameter Cap: 29.6 mm
- Material Front Ring: Metal
- With Light Source: Yes
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.1 kg
- 22.5mm round design with a green lens.
- IP65/IP66 rated for protection against dust and water.
- Screw connection for easy installation.
- Professional installation is recommended for optimal performance.
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
- Complies with relevant safety and performance standards.
- Energy-efficient design with low power consumption.
1 year warranty against manufacturing defects.
The Sprecher and Schuh D7 Pilot Light 22.5 mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
