D7MP6MN5W

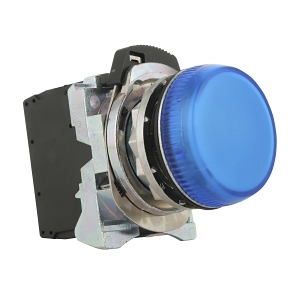

Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Blue


$90.00 List price: $119.60
+

Weight: 0.200 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Blue

Brand: NHP

SKU: D7MP6MN5W

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Operating Voltage: 120 V
  • Degree of Protection: IP65/IP66
  • Material Front Ring: Metal
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.2 kg
Key Features
  • 22.5mm round design with metal front ring.
  • IP65/IP66 rated for dust and water protection.
  • Screw connection for easy installation.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Long-lasting LED technology reduces waste and energy consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Blue is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
