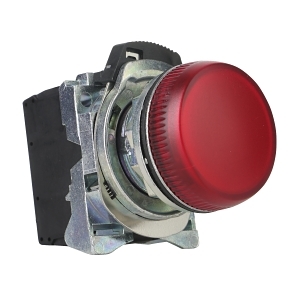

Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Red


$90.00 List price: $119.60
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Red

Brand: NHP

SKU: D7MP4MN5R

Alternatively Known As: LED Indicator Light, Pilot Light, Control Panel Light

Technical Specifications
  • Operating Voltage: 120 V
  • Rated Current: 0.03 A
  • Lamp Power: 1 W
  • Rated Frequency: 50-60 Hz
  • Luminous Intensity: 0.01 cd
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 22.5mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a metal front ring.
  • IP65/IP66 rated for dust and water protection.
  • Screw connection for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal safety and performance.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with relevant safety standards for electrical components.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Complete Metal LED 120V AC Red is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
