D7PP3PN3G

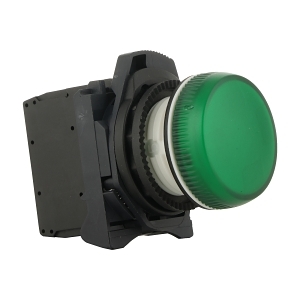

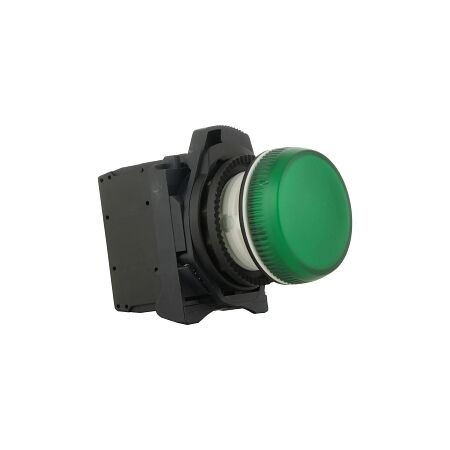

Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 24V AC DC Green Lens


$34.70 List price: $46.00
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 24V AC DC Green Lens

Brand: NHP

SKU: D7PP3PN3G

Alternatively Known As: Indicator Light, LED Pilot Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Lamp Power: 1 W
  • Operating Voltage: 24 V
  • Luminous Intensity: 0.01 cd
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • 22.5mm round design with a green lens.
  • IP65/IP66/IP69K rated for protection against dust and water.
  • Screw connection for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
