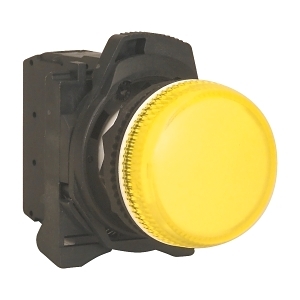

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Complete Plastic LED 24V AC DC Yellow Lens
Brand: NHP
SKU: D7PP5PN3W
Alternatively Known As: Indicator Light, Pilot Light, LED Indicator, Control Panel Light
- Voltage Type: AC/DC
- Rated Current: 0.03 A
- Rated Frequency: 50-60 Hz
- Lamp Power: 1 W
- Operating Voltage: 24 V
- Degree of Protection: IP65/IP66/IP69K
- Material: Plastic
- Light Source: Yes
- Construction Type: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Luminous Intensity: 0 cd
- Hole Diameter: 22.5 mm
- Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
- Weight: 0.1 kg
- 22.5mm round design with yellow lens.
- IP65/IP66/IP69K rated for protection against dust and water.
- Screw connection for easy installation.
- Professional installation is recommended for optimal performance.
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Energy-efficient design with low power consumption.
1 year warranty against manufacturing defects.
The Sprecher and Schuh D7 Pilot Light 22.5mm is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
