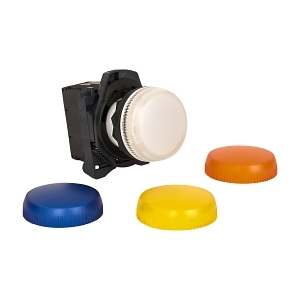

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack LED Module 24 to 120V AC DC Multi Colour Lens
Brand: NHP
SKU: D7PPL120UHS
Alternatively Known As: LED Indicator Light, Pilot Light Module, Control Panel Light
- Rated Operating Voltage: 24-120V AC/DC
- Rated Current: 0.03 A
- Type of Electric Connection: Screw connection
- Number of Indicator Lights: 1
- Rated Frequency: 50-60 Hz
- Degree of Protection: IP65/IP66/IP69K
- Material Front Ring: Plastic
- With Light Source: Yes
- Construction Type Lens: Round
- Max Shock Acceleration: 100 g
- Max Vibration Frequency Operational: 2000 Hz
- Max Vibration Acceleration: 10 m/s²
- Hole Diameter: 22.5 mm
- Diameter Cap: 29.6 mm
- Dimensions (H x L x W): 22.5mm x 30mm x 30mm
- Weight: 0.1 kg
- Multi-colour lens for versatile applications.
- IP65/IP66/IP69K rated for protection against dust and water.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Control panels, machinery indicators
- Commercial: Equipment status indication
- Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
- Energy-efficient design with low power consumption.
1 year warranty against manufacturing defects.
The Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack LED Module is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable indicator lights.
