D7PPL240UHS

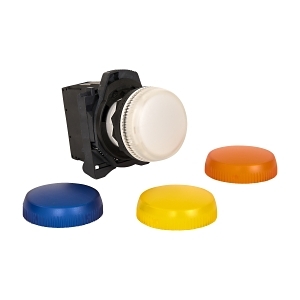

Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack LED Module 240V AC Multi Colour Lens


$46.40 List price: $61.60
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack LED Module 240V AC Multi Colour Lens

Brand: NHP

SKU: D7PPL240UHS

Alternatively Known As: LED Indicator Light, Pilot Light Module, Control Panel Light

Technical Specifications
  • Voltage Type: AC
  • Rated Current: 0.02 A
  • Rated Frequency: 50-60 Hz
  • Operating Voltage: 240 V
  • Degree of Protection: IP65/IP66/IP69K
  • Material Front Ring: Plastic
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Diameter Cap: 29.6 mm
  • Dimensions (H x L x W): 30mm x 30mm x 30mm
  • Weight: 0.1 kg
Key Features
  • IP65/IP66/IP69K rated for high protection against dust and water.
  • Screw connection for secure electrical connection.
  • Multi-colour lens for versatile indication.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack LED Module 240V AC Multi Colour Lens is available now for immediate purchase. Ideal for industrial and commercial applications.
