Trade Discount 25%
D7PP3PN3GHS

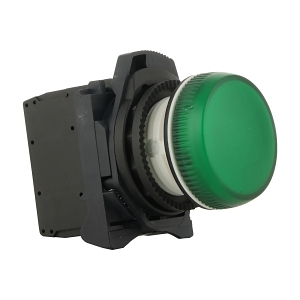

Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack Plastic LED 24V AC DC Green


$30.70 List price: $40.80
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack Plastic LED 24V AC DC Green

Brand: NHP

SKU: D7PP3PN3GHS

Alternatively Known As: 24V LED Pilot Light, Indicator Light, Control Panel Light

Technical Specifications
  • Voltage Type: AC/DC
  • Rated Current: 0.03 A
  • Rated Frequency: 50-60 Hz
  • Operating Voltage: 24 V
  • Colour Lens: Green
  • Material Front Ring: Plastic
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 29.6mm x 29.6mm
  • Weight: 0.1 kg
Key Features
  • IP65/IP66/IP69K rated for high protection against dust and water.
  • Screw connection for easy installation.
Professional Installation Requirements
  • Professional installation is recommended for optimal performance.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 3820 for essential safety requirements for electrical equipment.
Environmental Benefits
  • Energy-efficient design with low power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Hangsell Pack Plastic LED 24V AC DC Green is available now for immediate purchase. Ideal for industrial and commercial applications.
