D7DP3N7

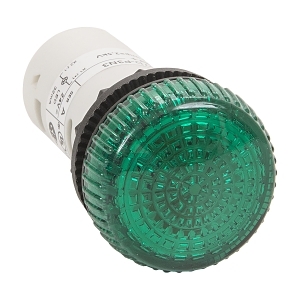

Sprecher and Schuh D7 Pilot Light 22.5mm Monolithic LED 240V AC Green


$69.40 List price: $92.10
+

Weight: 0.100 kg

Product Name/Title: Sprecher and Schuh D7 Pilot Light 22.5mm Monolithic LED 240V AC Green

Brand: NHP

SKU: D7DP3N7

Alternatively Known As: LED Indicator Light, Pilot Light, Monolithic LED Light

Technical Specifications
  • Voltage Type: AC
  • Rated Current: 0.02 A
  • Type of Electric Connection: Screw connection
  • Number of Indicator Lights: 1
  • Lamp Power: 1 W
  • Operating Voltage: 240 V
  • Colour Lens: Green
  • Degree of Protection: IP65/IP66
  • Material Front Ring: Plastic
  • With Light Source: Yes
  • Construction Type Lens: Round
  • Max Shock Acceleration: 100 g
  • Max Vibration Frequency Operational: 2000 Hz
  • Max Vibration Acceleration: 10 m/s²
  • Luminous Intensity: 0.01 cd
  • Hole Diameter: 22.5 mm
  • Dimensions (H x L x W): 22.5mm x 30.4mm x 30.4mm
  • Weight: 0.1 kg
Key Features
  • Monolithic design with a 22.5mm diameter for easy installation.
  • IP65/IP66 rated for protection against dust and water.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Control panels, machinery indicators
  • Commercial: Equipment status indication
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Energy-efficient 1W power consumption.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Sprecher and Schuh D7 Pilot Light 22.5mm Monolithic LED 240V AC Green is available now for immediate purchase. Ideal for industrial and commercial applications.

Non-Returnable & Non-Cancellable
